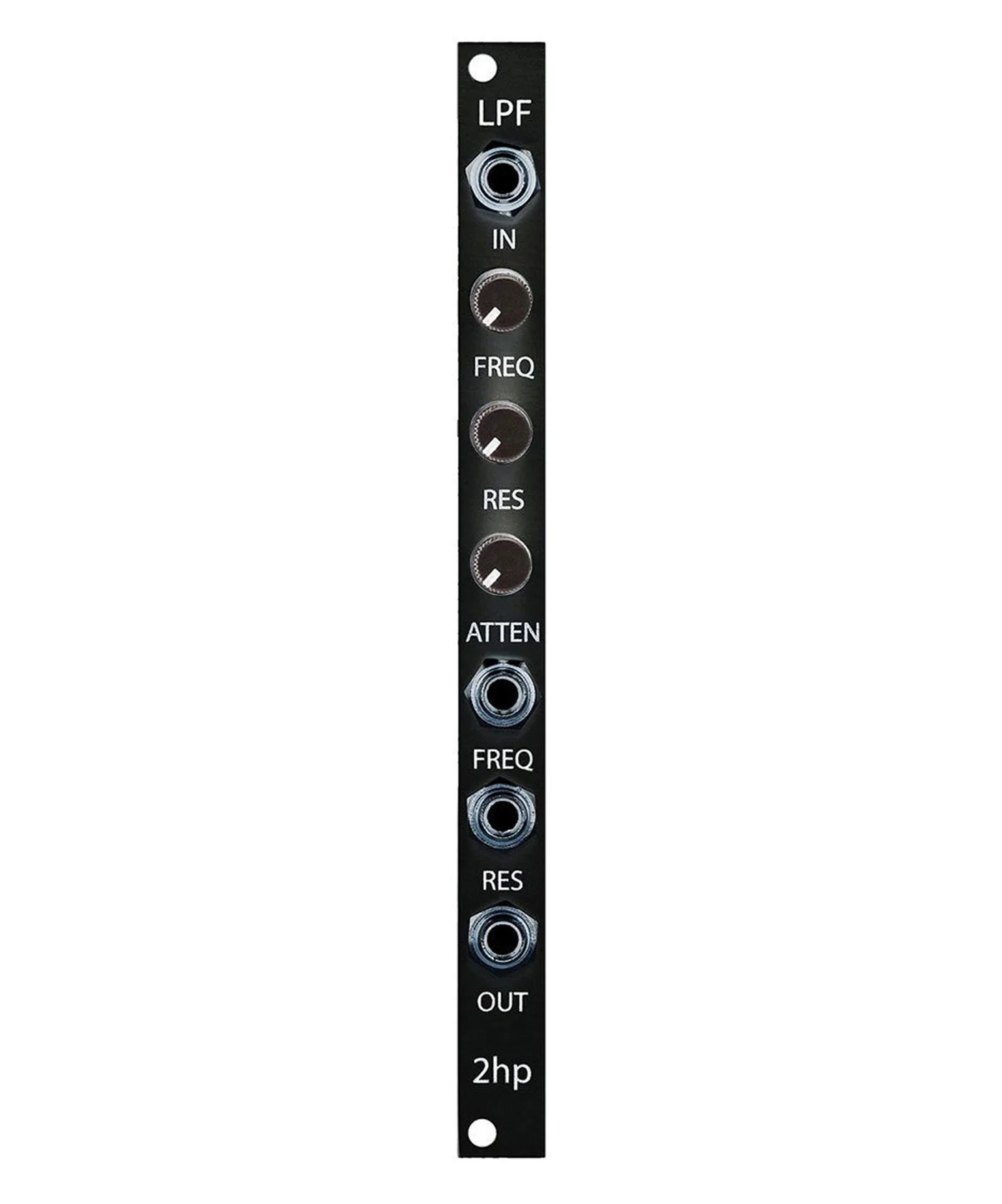

LPF is a four-pole, voltage controlled low-pass filter. Its 24 dB per octave slope and OTA topology provide a smooth, buttery character. Resonance can be pushed to self oscillation, turning it into a sine wave VCO with accurate 1V/oct tracking across four octaves.

In addition, CV over resonance gives dynamic sound shaping possibilities under voltage control. Hit the slope with LPF.

• Analogue, voltage controlled low pass filter
• Classic four pole, OTA topology
• CV over resonance
• Capable of self oscillation
• Accurate 1V/oct tracking across four octaves
• Skiff friendly

Video: https://youtu.be/Oy44pIaU40E

Product Specs

• Item Number: 10008
• Make: 2hp
• Model: LPF - Black
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Filter
• Made In: United States
• MPN: 2hp_LPF_Black
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 2 HP 42 mm deep
• Power: 20 mA +12V 20 mA -12V 0 mA 5V
