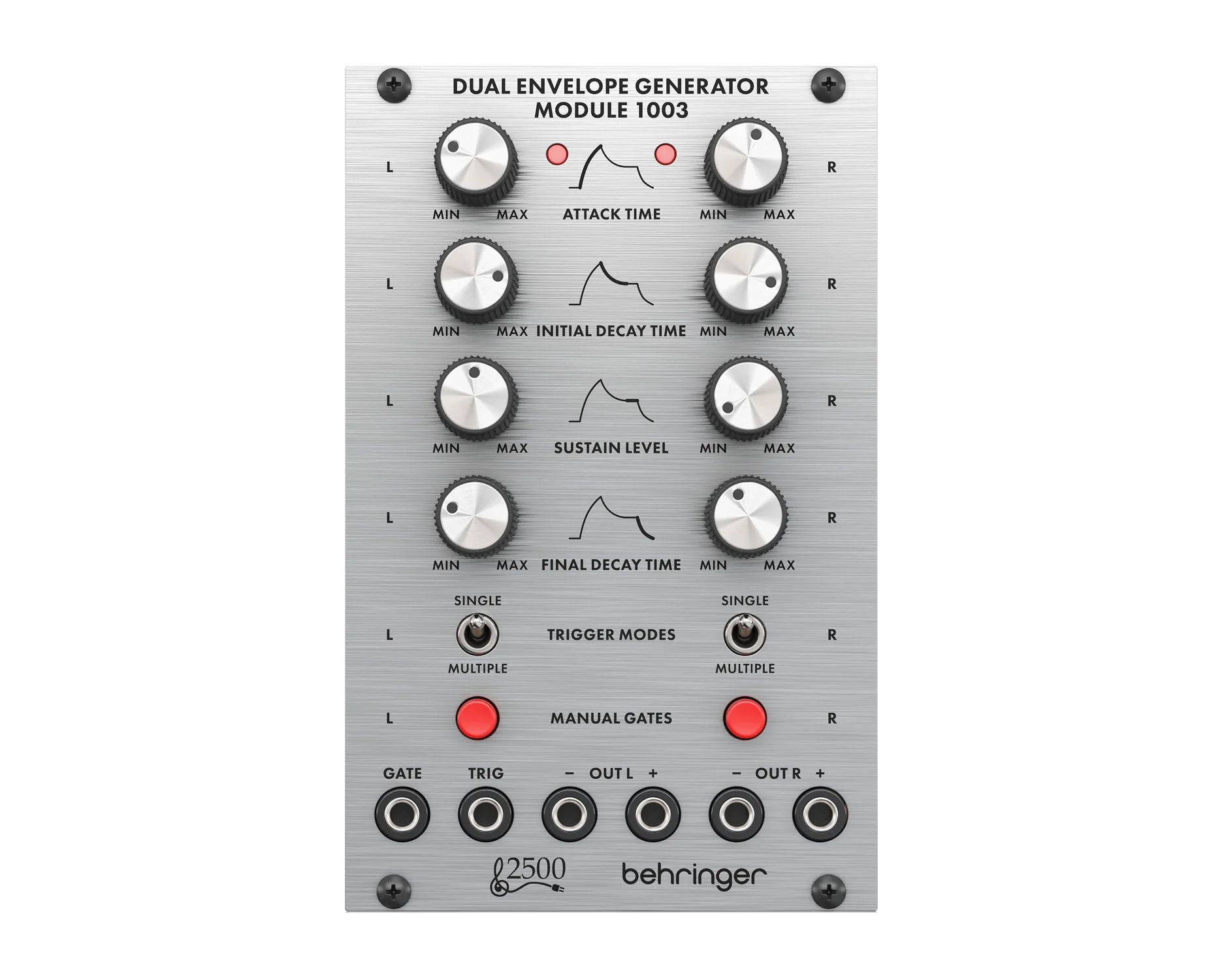

Behringer 1003 Dual Envelope Generator Module
The 1003 Dual Envelope Generator is an authentic 16HP imitation of the classic “System 2500” circuit from the '70s compatible with a standard Eurorack case.
Containing two identical envelope generators for creating control signals, it has four adjustable parameters;
* Attack
* initial Decay
* Sustain
* final Decay
Each envelope is initiated by Gate and Trigger signals. Switchable between 2 operating modes for added flexibility. Single trigger mode uses only the gate signal to control the envelope. Multi trigger mode uses a positive trigger pulse to re-trigger the envelope while a Gate signal is present. Manual gate operation via front panel push button with LED for gate signal indication.
Product Specs
- Item Number: 15975
- Make: Behringer
- Model: 1003 Dual Envelope Generator Module
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Dual/Stereo Envelope Generator
- Made In: China
- MPN: BEH-1003DUALENVGENMODULE
- UPC: 644216639809
- EAN: 4033653032483
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 16 HP 42 mm deep
- Power*: 40 mA +12V 20 mA -12V ? mA 5V
* User contributed details
