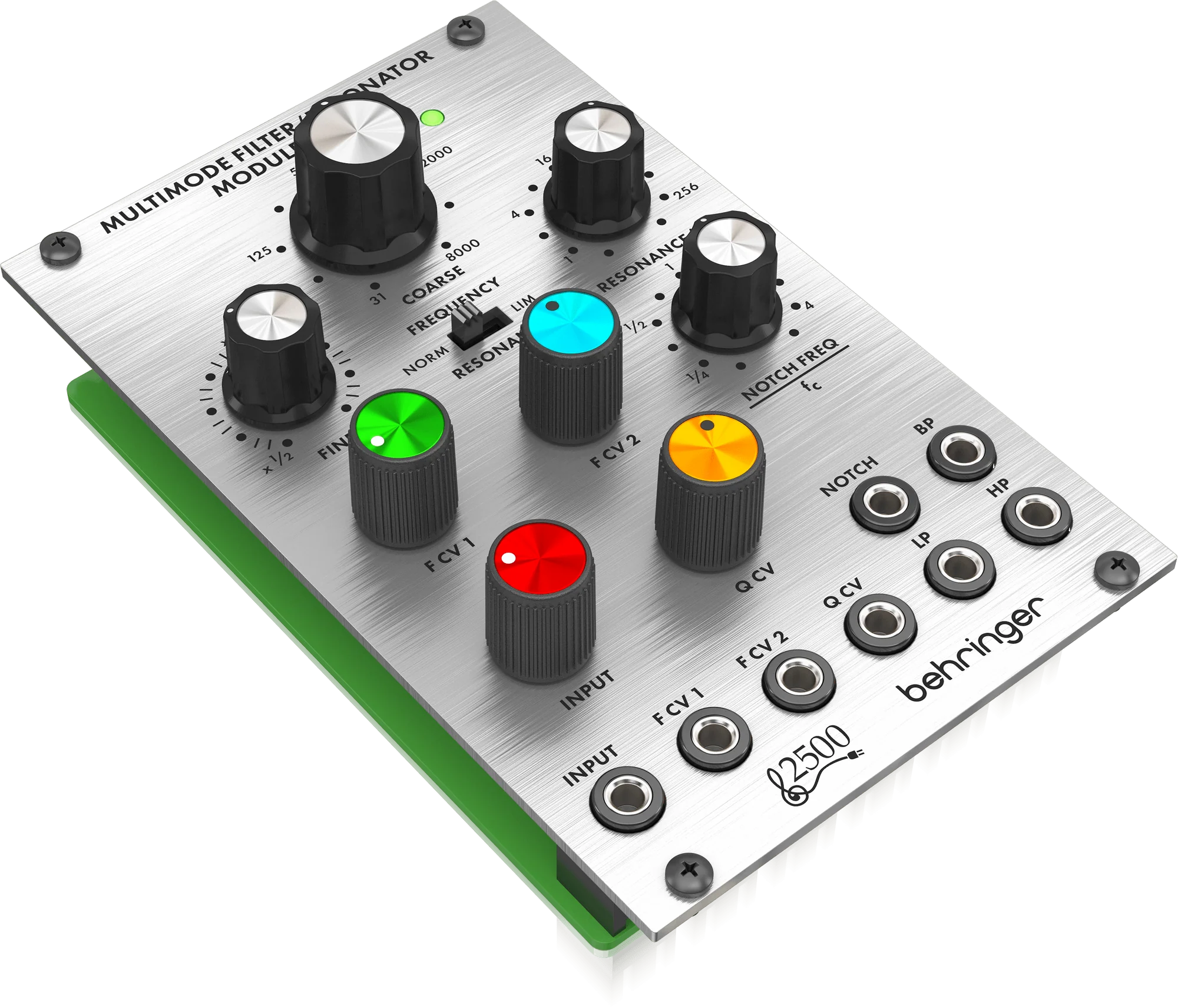

Behringer 1047 Multimode Filter
2500 Series 12dB State Variable Filter Module for Eurorack. The 1047 is a 16hp eurorack sized reproduction of the original “System 2500” circuitry from the '70s. A classic voltage controlled 12 dB per octave state variable filter, the 1047 is a matched transistor design. Equipped with a coarse and fine filter frequency controls, a resonance (Q) control which acts on all 4 filter outputs, a resonance limit switch prevents signal overload when high levels of resonance are used, the notch frequency/fc control allows the notch frequency to be adjusted up or down from fc as set by the frequency controls, 2 summed frequency CV attenuators and a resonance (Q) CV attenuator for maximum flexibility, the signal input is also equipped with an attenuator. Comprehensive connectivity, filter signal input, FCV 1 and FCV 2 inputs can be used for filter frequency control or modulation, the Q CV input allows modulation of Q and resonance. The independent low-pass, high-pass, band-pass and notch filter outputs are all available simultaneously to feed multiple filter signals to other modules.
More
Product Specs
- Item Number: 17095
- Make: Behringer
- Model: 1047 Multimode Filter
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Filter Resonator
- Made In: China
- MPN: BEH-1047MULTIFILTERRESOMODULE
- UPC: 644216640508
- EAN: 4033653032230
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 16 HP 43 mm deep
- Power*: 55 mA +12V 45 mA -12V ? mA 5V
* User contributed details
