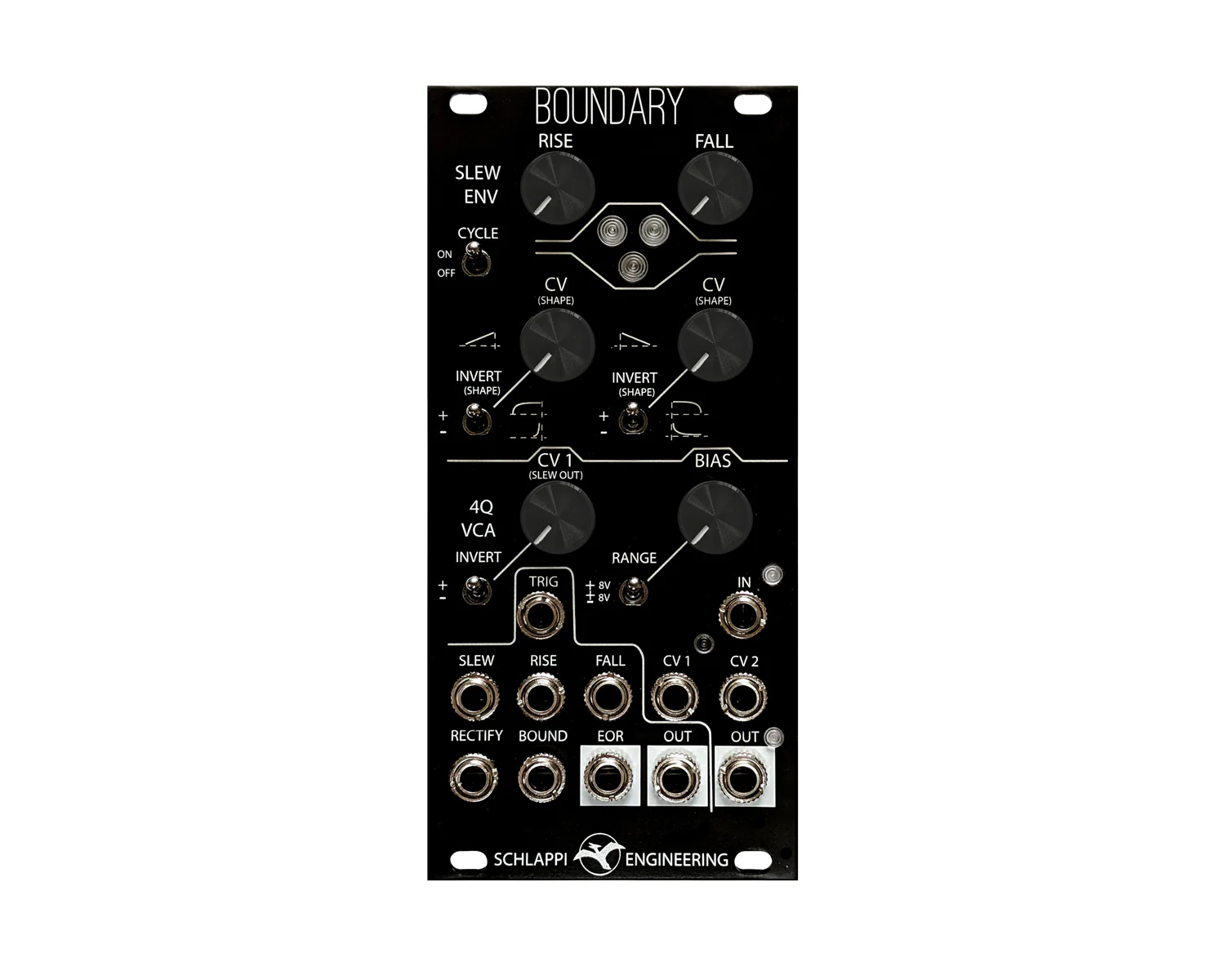

The Boundary is a multi-function cycling slew and four quadrant VCA.

Features:

• LFO and modulation oscillator (from cycles measured in minutes to high audio rate)
• Slew input can be used with gate signals for attack-release envelope
• Trig input can be used for attack-decay envelope
• Slew input can also be used as portamento for v/oct signals
• Rectify input has a full wave rectifier to act as a high quality envelope follower
• Trig input can also be used for voltage controlled frequency division at clock or audio rate
• Bound input allows for unique bouncing ball effects and combined AM/FM modulation
• EOR output can be used for gate/trigger delay
• Soft limiter on the VCA output allows for taming or distortion of wild signals
• Four quadrant VCA allows for ring modulation

Video: https://youtu.be/tH5f8eyGW_U

Product Specs

• Item Number: 19725
• Make: Schlappi Engineering
• Model: Boundary - Black
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Clock Modulator Envelope Follower Envelope Generator LFO Oscillator Ring Modulator Slew Limiter VCA
• Made In: United States
• MPN: SE-BOUNDBLK
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 12 HP 25 mm deep
• Power*: 112 mA +12V 59 mA -12V ? mA 5V

* User contributed details
