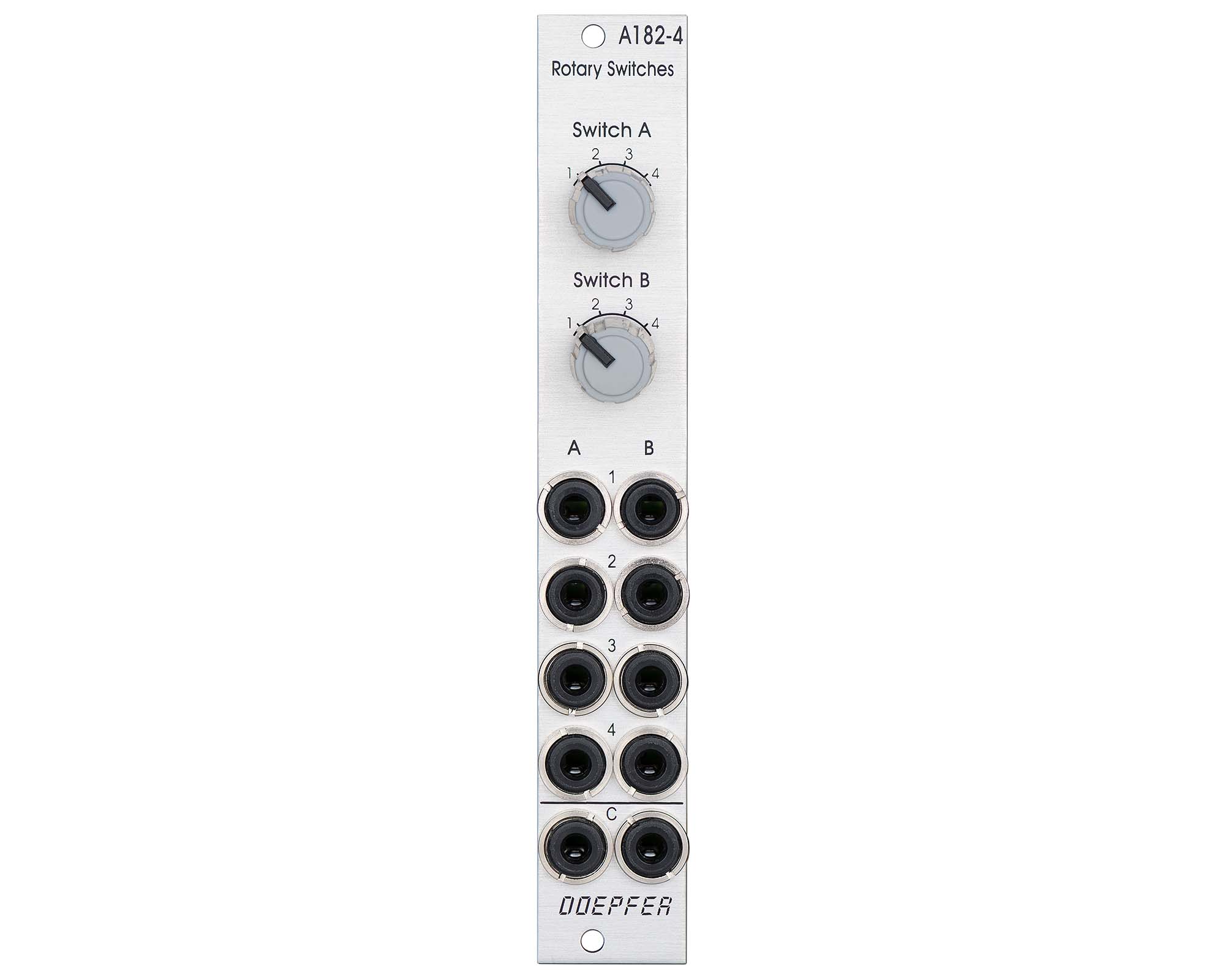

Doepfer A-182-4 Dual Rotary Switch
Module A-182-4 is a simple passive module that contains two mechanical rotary switches with 4 positions each. According to the position of the control knob socket 1, 2, 3 or 4 is connected to the common socket C.
As the module is fully passive it works bidirectional, i.e. the sockets 1...4 can be inputs and then C is the output. The other way round C can be the input and the sockets 1...4 are the outputs.
By means of an internal jumper the terminals C of both switches can be connected. That way the module can be used as kind of a miniature 4x4 matrix. Rotary switch A is e.g. used to select one of the four sockets 1...4 as input and this signal is sent to one of the four sockets 1...4 of switch B.
Width: 4HP Depth: 20mm Consumption: Zero (passive)
Product Specs
- Item Number: 20959
- Make: Doepfer
- Model: A-182-4 Dual Rotary Switch
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Made In: Germany
- MPN: A-182-4
- EAN: 4250711118242
