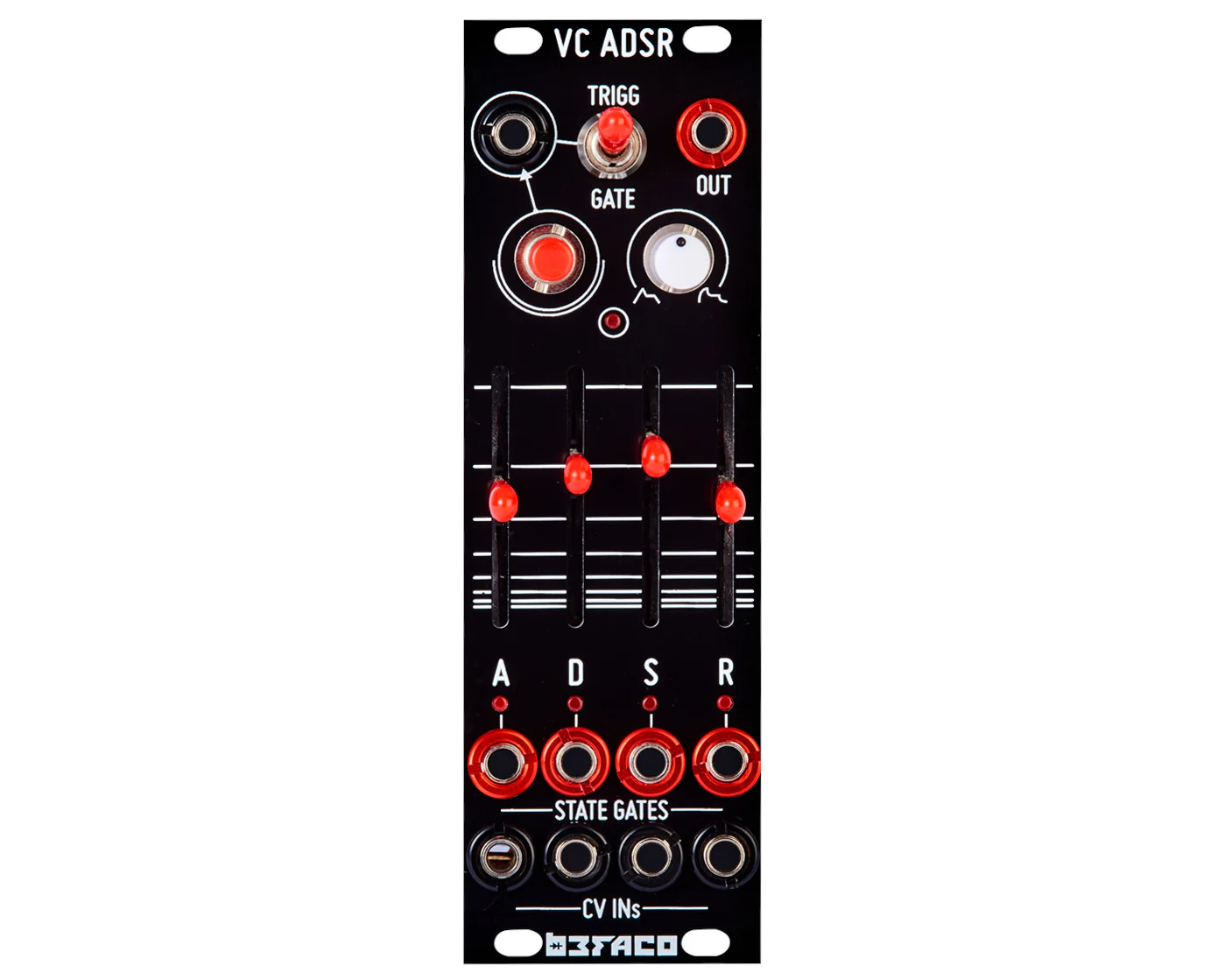

The VC ADSR is Befaco's take on the classic ADSR: now smaller, more powerful and user friendly.

The circuit is based in a dual transistor “Current Mirror” (a voltage controlled integrator) and switching logic.

• Voltage controlled stages with manual control.
• Gate output on each stage of the envelope.
• Push button and Gate/Trigger input
• Control of the response curve between each stage of the envelope (from linear to logarithmic/exponential)
• Width: 8 HP

Video: https://youtu.be/2CMBgJwuGb4

Product Specs

• Item Number: 21179
• Make: Befaco
• Model: VC ADSR
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Envelope Generator
• Made In: Spain
• MPN: BF013
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 8 HP 30 mm deep
• Power: 55 mA +12V 15 mA -12V 0 mA 5V
