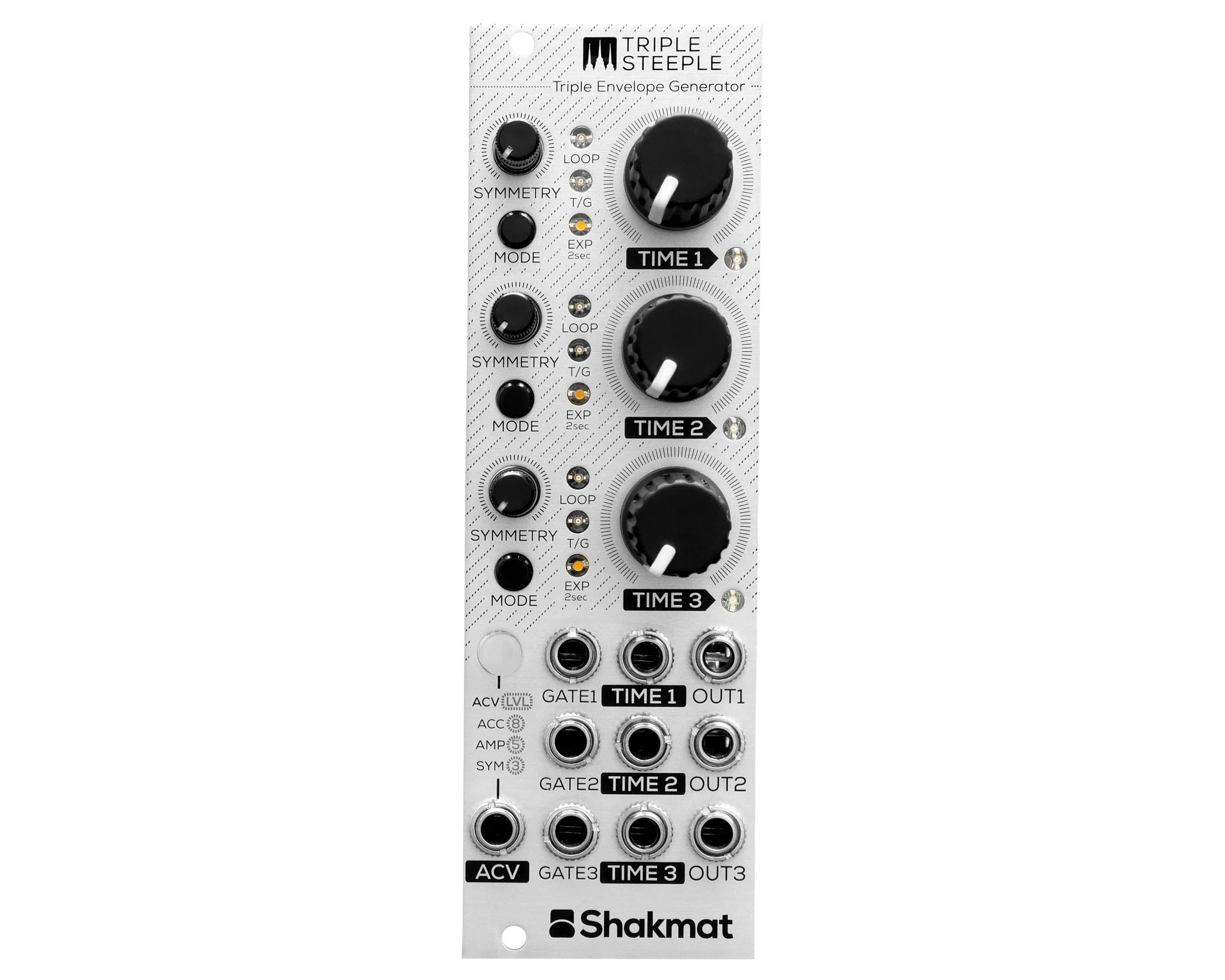

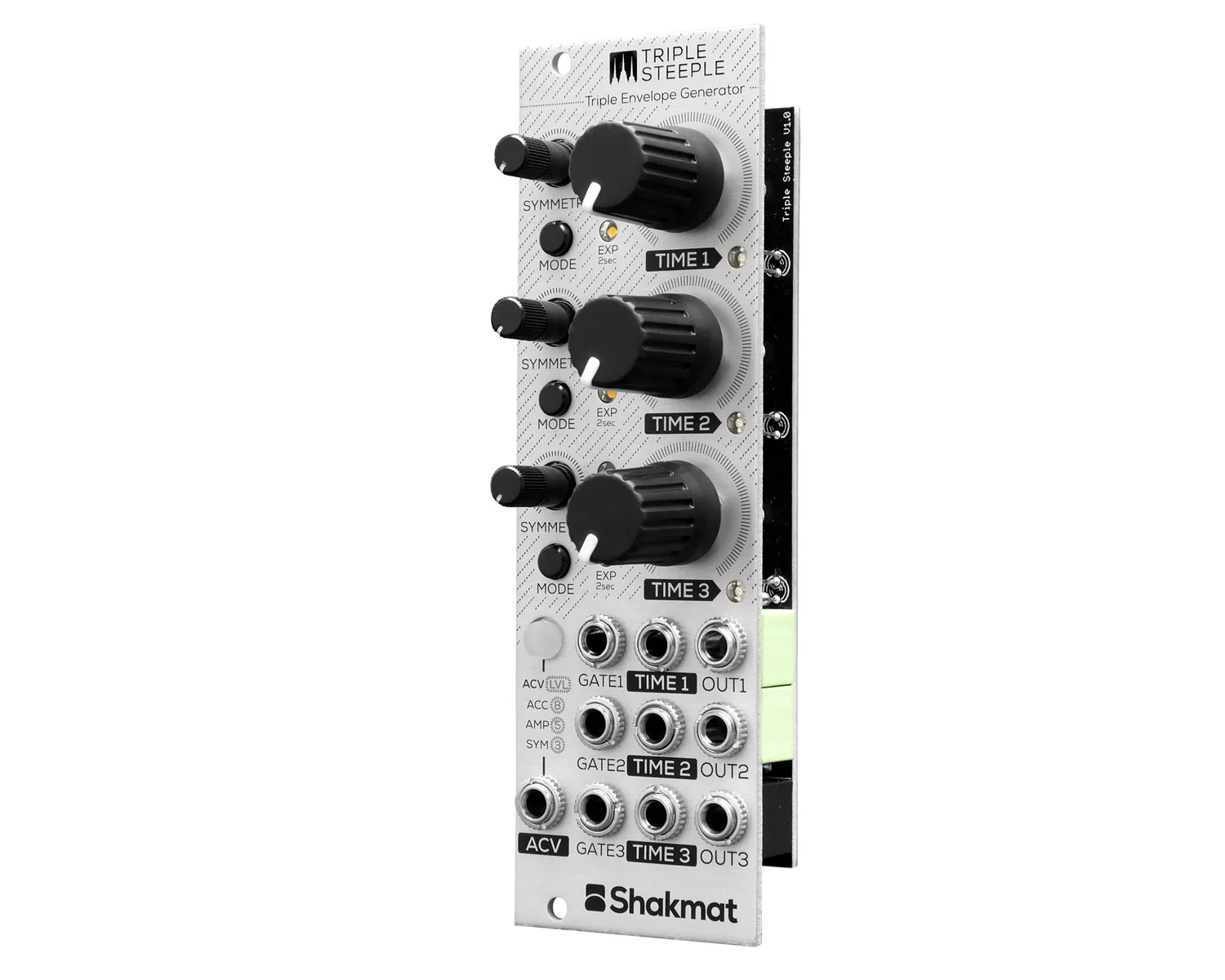

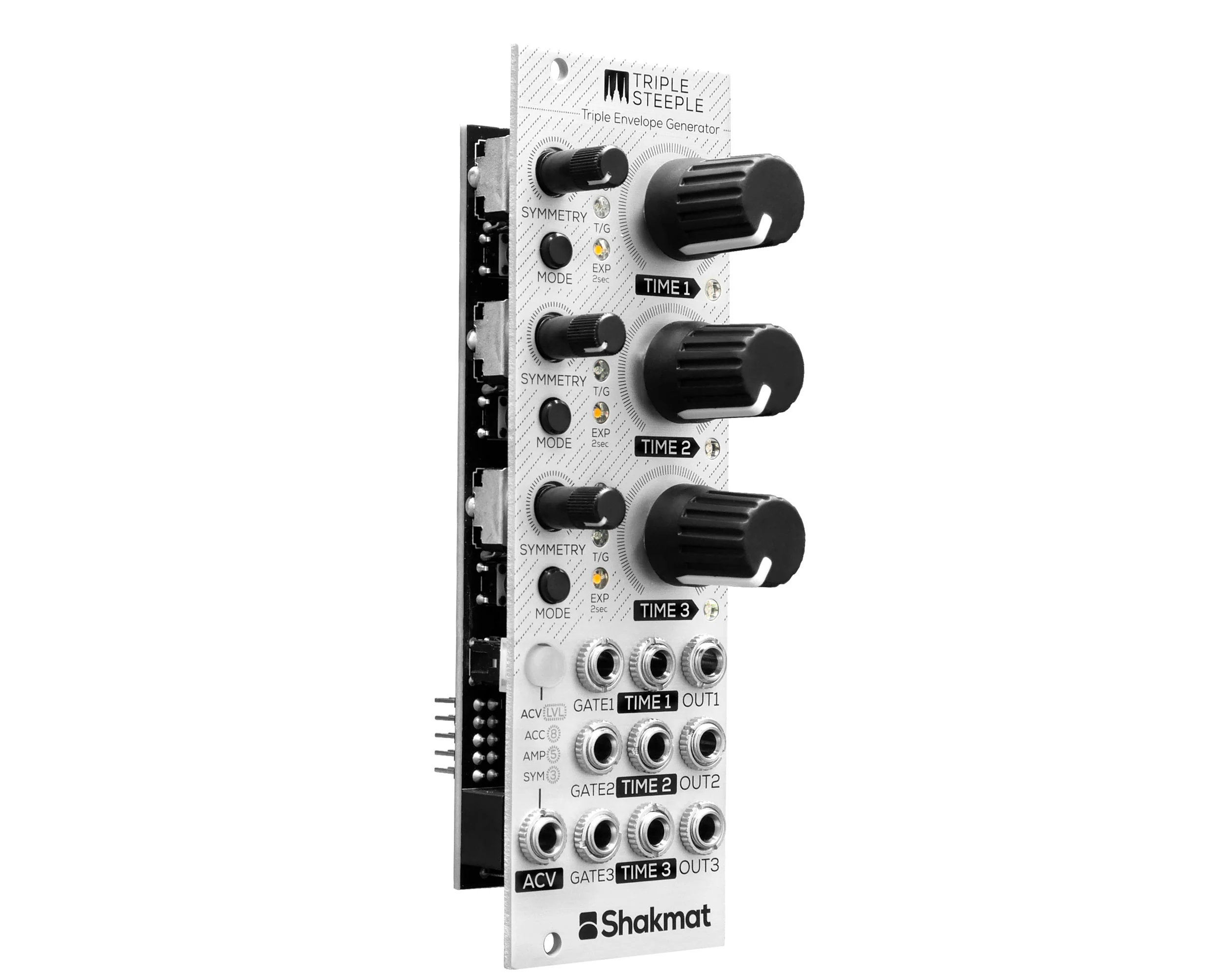

The triple steeple is a three-channel envelope generator with control over time and symmetry. With five envelope modes, linear or exponential response, CV control over time, an assignable CV input, and internal normalizations, the module will provide the generation of anything from basic envelope shapes to complex modulation signals.

• Triple envelope generator with dedicated control of time and symmetry

• Five modes: triggered, gated, looped, gated loop and clocked loop

• Linear or exponential response

• Settable envelopes level

• Timing from 2,5 ms to 15 sec. (minimum attack or decay time of 250 microseconds)

• VCA and accent modes thanks to the assignable CV input

• Input and output normalizations

• Current state storing

• Skiff Friendly

• Djtechtools rubber injected potentiometers

• 8 hp wide

Product Specs

• Item Number: 23207
• Make: Shakmat
• Model: Triple Steeple
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Envelope Generator
• Made In: Belgium
• MPN: SM-TS
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 8 HP 21 mm deep
• Power*: 40 mA +12V 8 mA -12V ? mA 5V

* User contributed details
