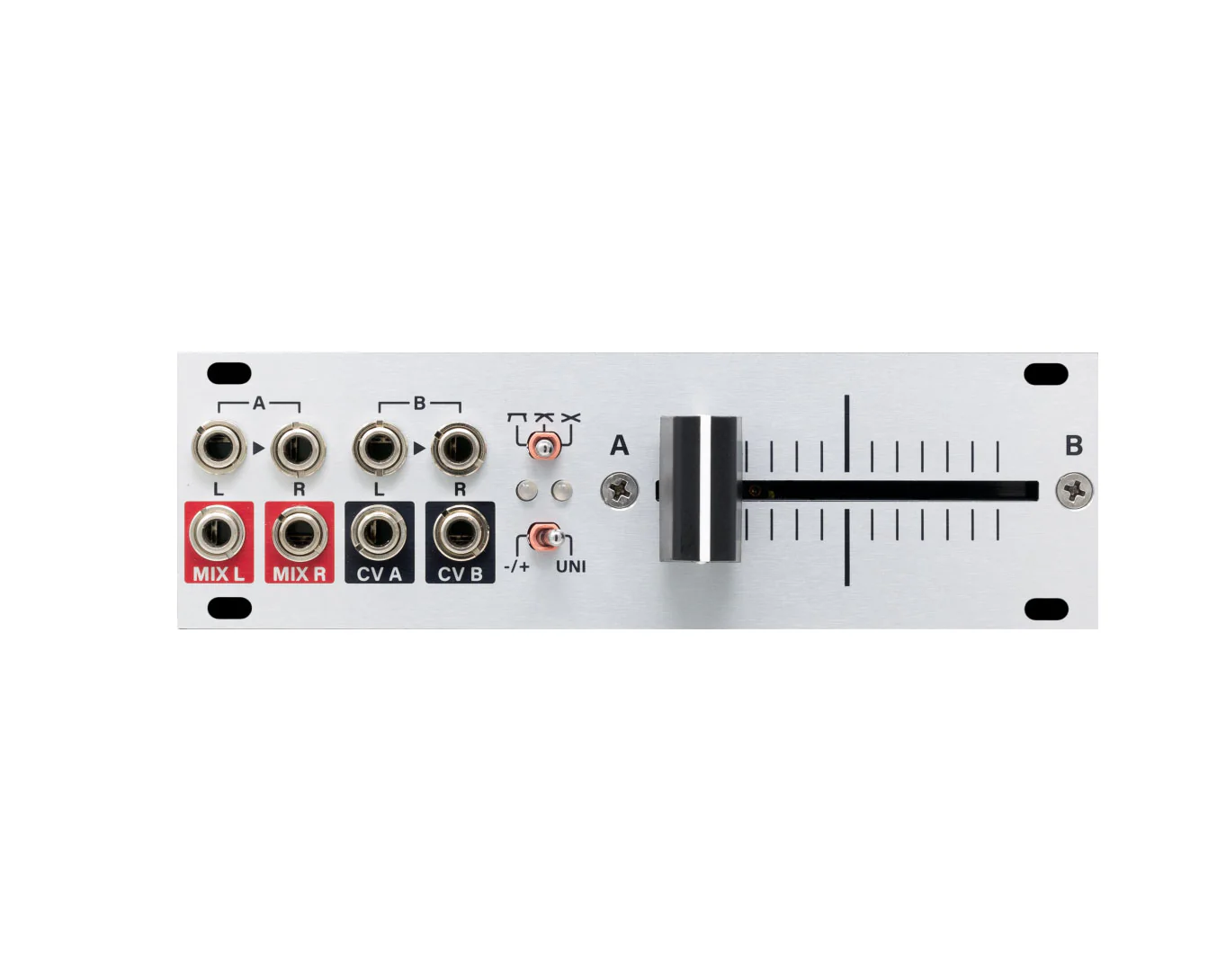

Xfade 1U is a classic DJ-style stereo crossfader, with a few extra tricks up its sleeve. The ‘A’ and ‘B’ sides both have L+R inputs. The crossfader blends two stereo input signals together — crossfading one into the other depending on the position of the slider and the selected Xfade Shape. The blended output appears at the MIX L and MIX R output jacks.

In addition, Xfade 1U can be used as a modulation source for controlling other modules, since the crossfader also outputs control voltages from the CV A and CV B jacks. A switch determines whether these voltages are unipolar (crossfading from 0V to 5V; and 5V to 0V), or bipolar (crossfading from -5V to +5V; and +5V to -5V). The two LEDs indicate the polarity and relative levels of the CV A and CV B signals

Features:

• Smooth and ultra-low friction Innofader Mini-Innofader module with moving capacitance technology

• Three crossfade shapes: DJ cut, Constant Power and Linear

• Stereo or Mono operation

• DC coupled inputs and outputs

• Unipolar or Bipolar CV outputs

• Output is chainable to intellijel Outs, Mixup, and Stereo Mixer 1U Modules via included 3-pin cable

Product Specs

• Item Number: 25345
• Make: Intellijel
• Model: XFADE 1U
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Controller Dual/Stereo Mixer Switch VCA
• Made In: Canada
• MPN: XFADE-1U
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 26 HP 38 mm deep
• Power: 48 mA +12V 41 mA -12V ? mA 5V
