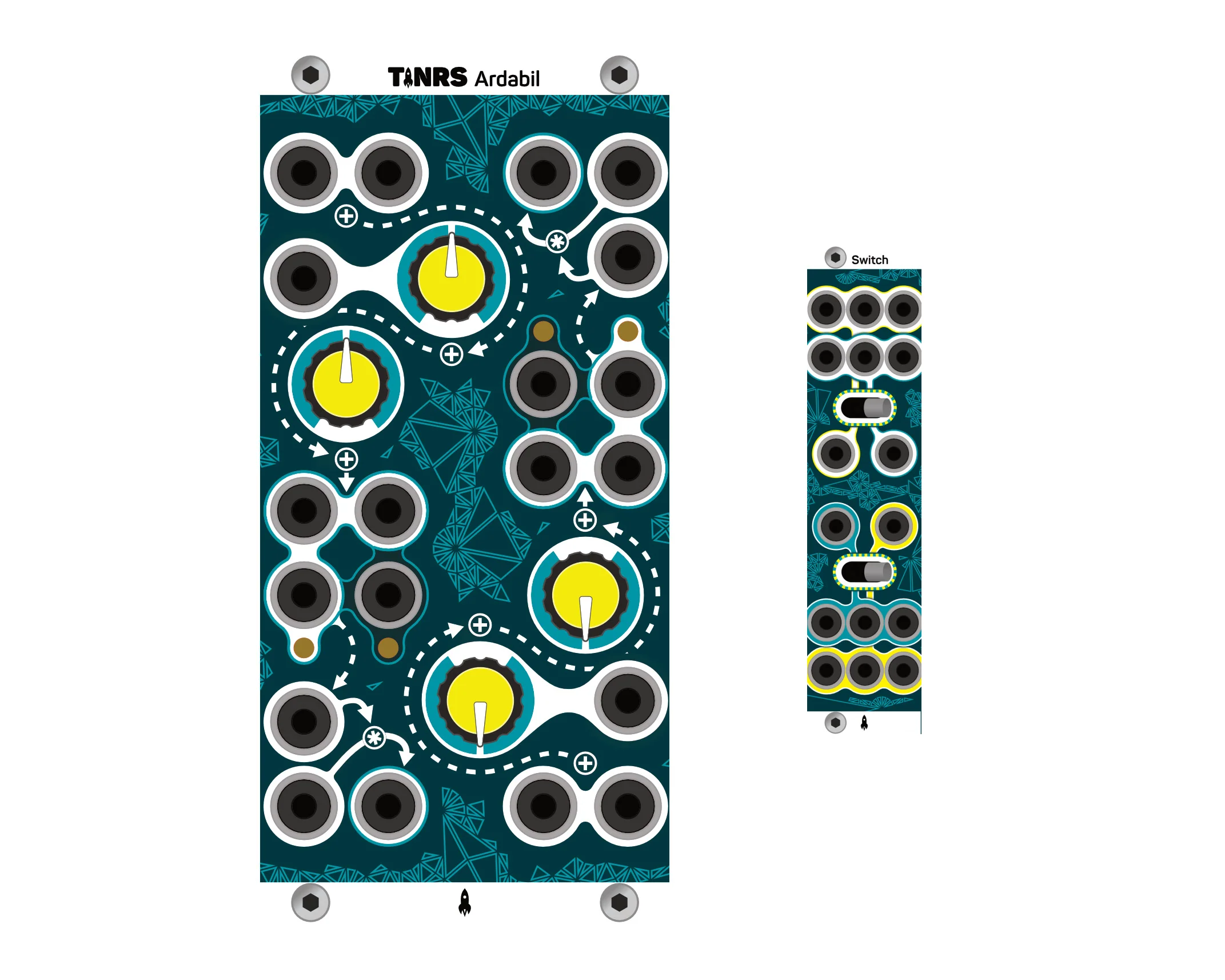

Bit of bof? The Ardabil is a utility module aimed at some of the more useful connections TiNRS could think of. The Switch comprises of 6 inputs sorted into pairs with a three way gang switch... doubled!

Ardabil Features

• Your thread starts with two CV inputs that add together without changing their scaling.
• Plug in any CV and let the knob scale your CV up or down -1 to +1 before it is added to your thread.
• The offset knob can add a fixed -5V to +5V to your woven signal.
• Threads into three buffered outputs; one has an LED that lights up when there is a positive signal.
• The fourth jack is an inverted output with a LED that lights up when there is a positive signal (which is a negative signal in the other three outputs).
• The CV input controls the volume of the audio input into the output. The CV input defaults to the signal from a buffered output.
• Adder + Attenuverter + Offset into Buffered Outputs.
• Buffered Output * -1 into Inverted Output CV (default is Buffered Output).
• Audio into VCA Output.

Video: https://youtu.be/HzI_Zg9k-BE

Product Specs

• Item Number: 27562
• Make: This Is Not Rocket Science
• Model: Ardabil + Switch
• Condition: Brand New
• Finish: Teal
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Attenuator Utility VCA CV Modulation Multiple
• Made In: Netherlands
• MPN: TiNRS-ARBSWI
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 12 HP 20 mm deep
• Power*: 80 mA +12V 2 mA -12V 0 mA 5V

* User contributed details
