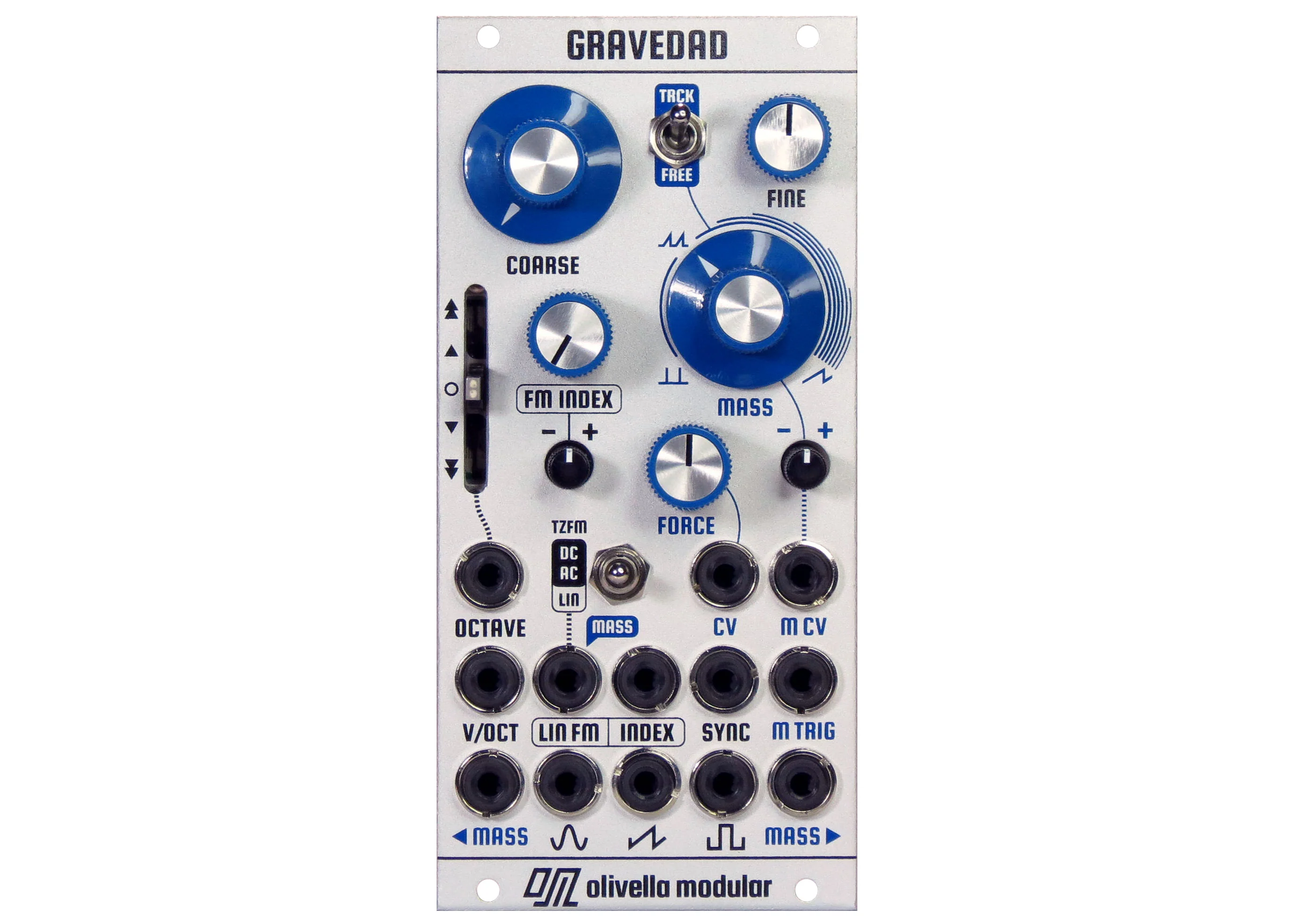

GRAVEDAD (/grah-veh-dahd/, gravity) is a feature-packed, analogue semi-complex oscillator with through-zero FM, an F-A-T stereo sub-harmonic generator, a voltage-controllable octave slider and excellent tracking up to 10 octaves, opening up an entire universe of sonic possibilities.

At the heart of GRAVEDAD is a super-stable triangle core VCO, featuring not only incredible tracking and temperature compensation but also clean sine, sawtooth, and square wave outputs.

Whether you need a VC clock divider, an attack-only envelope generator, a sub for an external oscillator, or a tool for any kind of signal generation, GRAVEDAD is your gateway to cosmic innovation.

• 12 HP
• Depth: 32 mm
• 2 mm anodised aluminium panel
• Input impedances: 50 kΩ (V/OCT), all others 100 kΩ
• Output impedance: 510 Ω
• +12V: 110mA
• -12V: 110mA
• Reverse-polarity power protection

Video: https://youtu.be/RIHv8faZvkk

Product Specs

• Item Number: 29170
• Make: Olivella Modular
• Model: Gravedad
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Dual/Stereo Frequency Divider Oscillator Waveshaper
• Made In: Argentina
• MPN: LVEL04
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 12 HP 32 mm deep
• Power: 110 mA +12V 110 mA -12V 0 mA 5V
