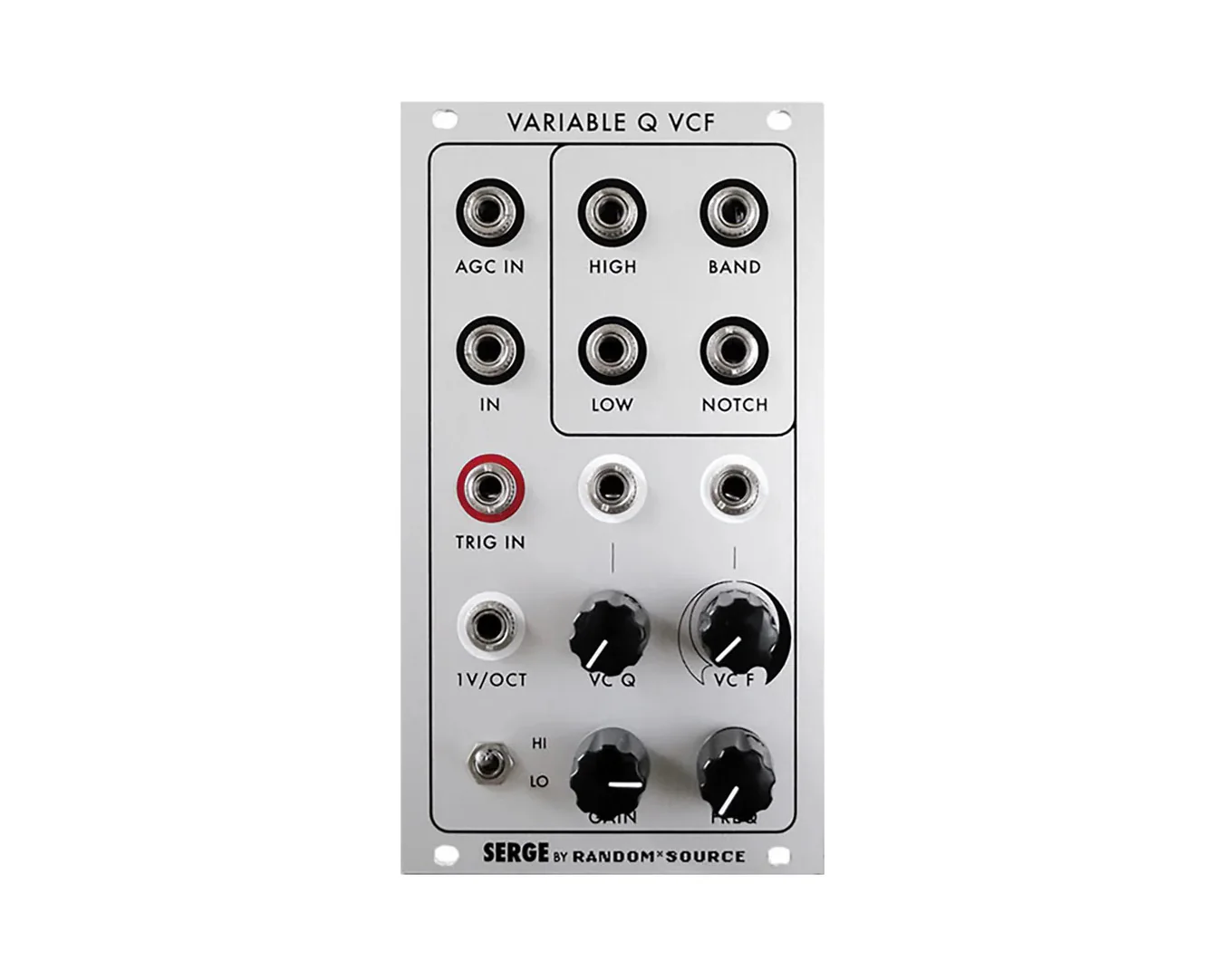

The Variable Q VCF (VCFQ) from Random Source is a skiff-friendly Eurorack adaptation of perhaps the most famous Serge filter. It is a thick and colourful 12dB/oct multimode filter with ultra-smooth resonance that doesn't cease to amaze. Amazing tonal variety comes from combining outputs, automating resonance settings via CV, and adding grit using its adjustable-gain input.

Simple filtration is only one of the VCFQ's many uses, however. Its amazing trigger input turns rising-edge pulses into thick analog kicks and toms which roughly track notes thanks to a dedicated 1V/oct input. This module also becomes an ultra-powerful modulator in "Lo" mode, with decaying/syncable LFOs well within grasp using the trigger input, along with free-running oscillation when self-patched.
When fed stepped sequences, sample and hold, or other LFOs, the VCFQ can even function as an effective slew limiter. And that's not all: for those lucky enough to own two VCFQs, dual-peak resonance and an ultra-thick 24dB/oct low-pass mode offer some of the most rewarding synth sounds in existence.

Features

• Analog multimode filter designed in collaboration with Serge Tcherepnin
• Automatic Gain Compensation and Variable Gain audio inputs
• Trigger input
• 1V/oct and attenuverted frequency CV inputs
• Attenuated Q CV input
• Low Pass, Hi Pass, Bandpass, and Notch outputs
• Hi/Lo range switch
• This is the skiff-friendly, SMD version of the Random*Source VCFQ

Video: https://youtu.be/Ie5py4ctMN8

Product Specs

• Item Number: 34258
• Make: Serge Modular
• Model: Variable Q Filter (VCFQ)
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Filter LFO Oscillator
• Made In: Germany
• MPN: SM-VCFQ
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 14 HP 26 mm deep
• Power*: 52 mA +12V 52 mA -12V 0 mA 5V

* User contributed details
