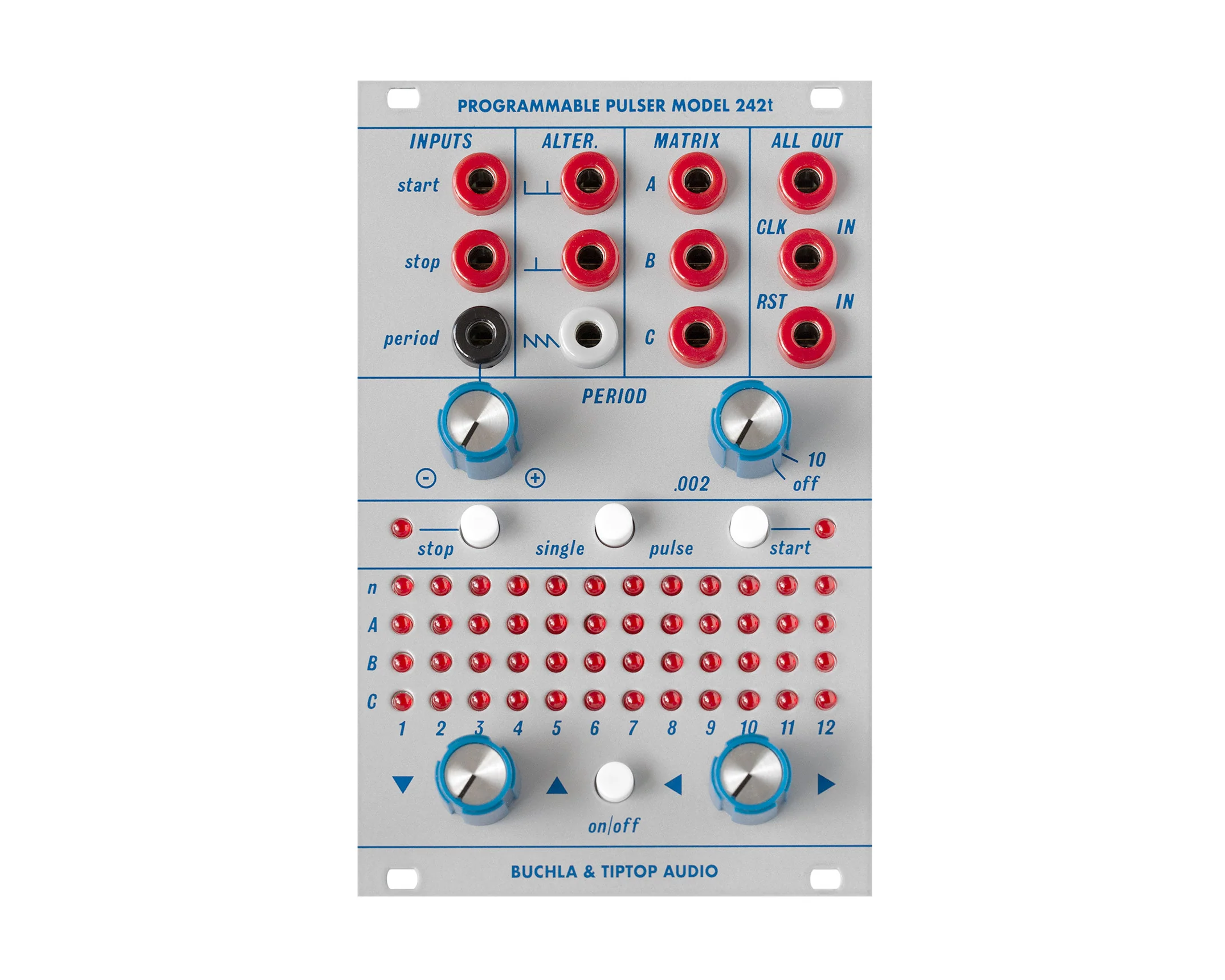

The Programmable Pulser Model 242t is a Eurorack version of the classic pin-matrix equipped gate generator, pdated for Eurorack.
The pin-matrix has been replaced with a 4x12 matrix of LEDs which you can scroll through using the two knobs below. This lets you address each channel individually to tell it to fire off a signal with a 4th n channel letting you change the overall length of the sequence.
Use this as the main heart of your patch, or as a way to further manipulate pulses with the Clock In and Reset inputs. The All out and Ramp generator, however, remain tied to the internal clock, which can create some interesting rhythmic variations.
Period controls the internal clock and can be CV controlled for organic movement, and an Alter section sends out alternating pulses. Whether you have experience with the classic module, are looking to complete your Buchla Eurorack system, or just need a flexible mutli-channel programmable clock, the Model 242t is here to keep your finger on the pulse.

Features

• 242t Programmable Pulser Features
• 3 Channel pulse generator
• 4 x12 matrix for assigning pulse outs and sequence length
• Period section for internal clock adjustment
• Inputs for starting and stopping the sequence
• Alter section sends out alternating pulses
• Grey-jack ramp output sends out a continuous ramp signal tied to the internal clock
• Individual outputs for all three channels
• All Out sends out all pulses and is tied to the internal clock
• Clock and Reset input

Video: https://youtu.be/9HQiF4xc-cM

Product Specs

• Item Number: 35971
• Make: Tiptop Audio
• Model: 242t
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Made In: Thailand
• MPN: TTA-242
• EAN: 8859469914036
