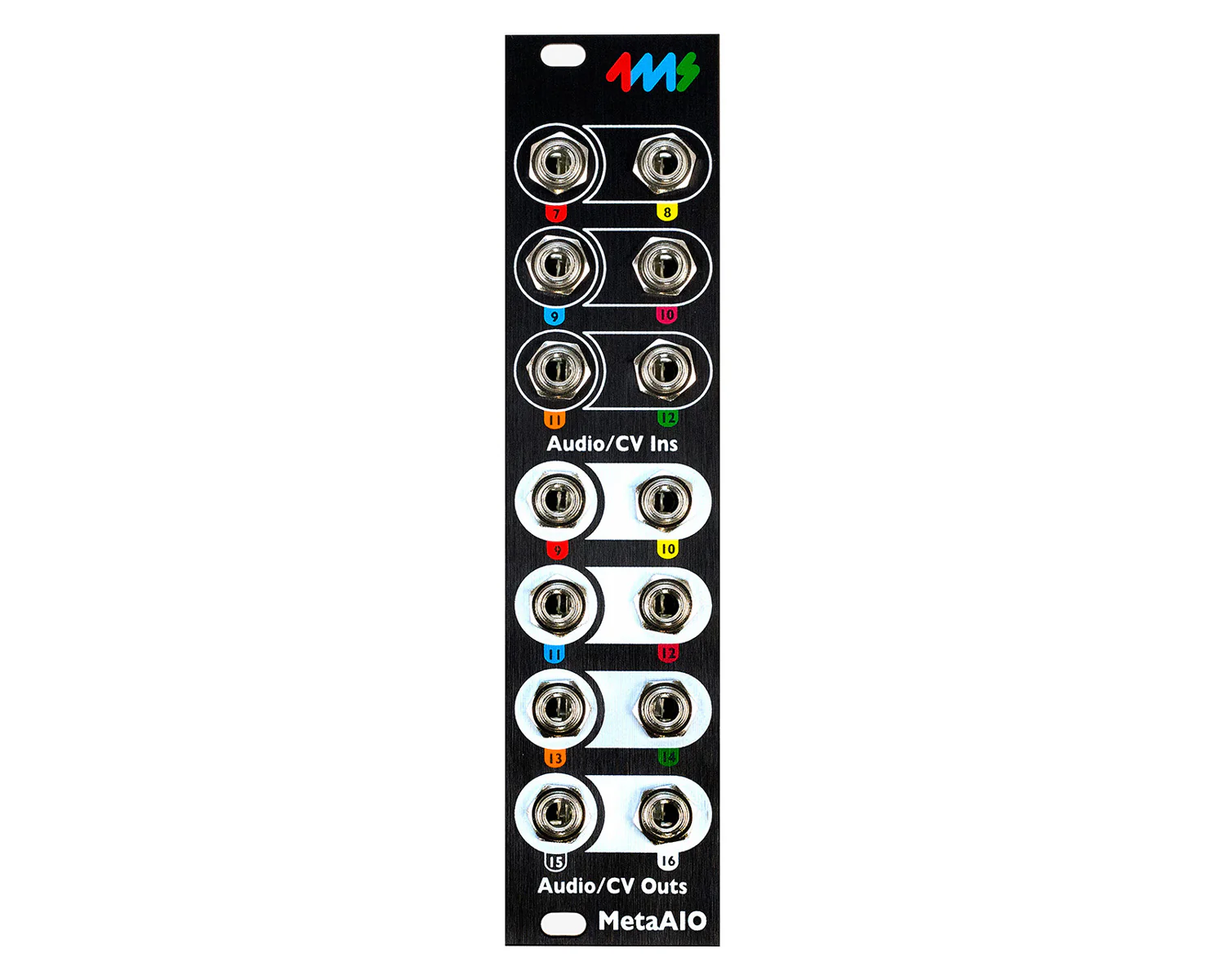

The MetaAIO expands your MetaModule with 6 additional CV/Audio inputs and 8 outputs, maintaining the same high-quality 24-bit, 48kHz (up to 96kHz) audio performance. Connected via a ribbon cable, this 6HP Eurorack module is DC-coupled, handling signals from -10V to +10V. Requires the MetaModule for operation.

Specifications

• Size: 6HP, 32mm max depth (including ribbon cable)
• Connectivity: 16-pin Eurorack power header, includes 2x5 ribbon cable
• Power Consumption: +12V: 140mA max, -12V: 25mA max, +5V: (not used)
• I/O: 8 CV/Audio outputs, 6 CV/Audio inputs (24-bit, 48kHz, DC-coupled)
• User Memory: Stores calibration values for each jack

Product Specs

• Item Number: 36149
• Make: 4ms
• Model: MetaAIO
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Expander
• Made In: United States
• MPN: ALM-MetaAIO
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 6 HP 32 mm deep
• Power: 140 mA +12V 25 mA -12V 0 mA 5V
