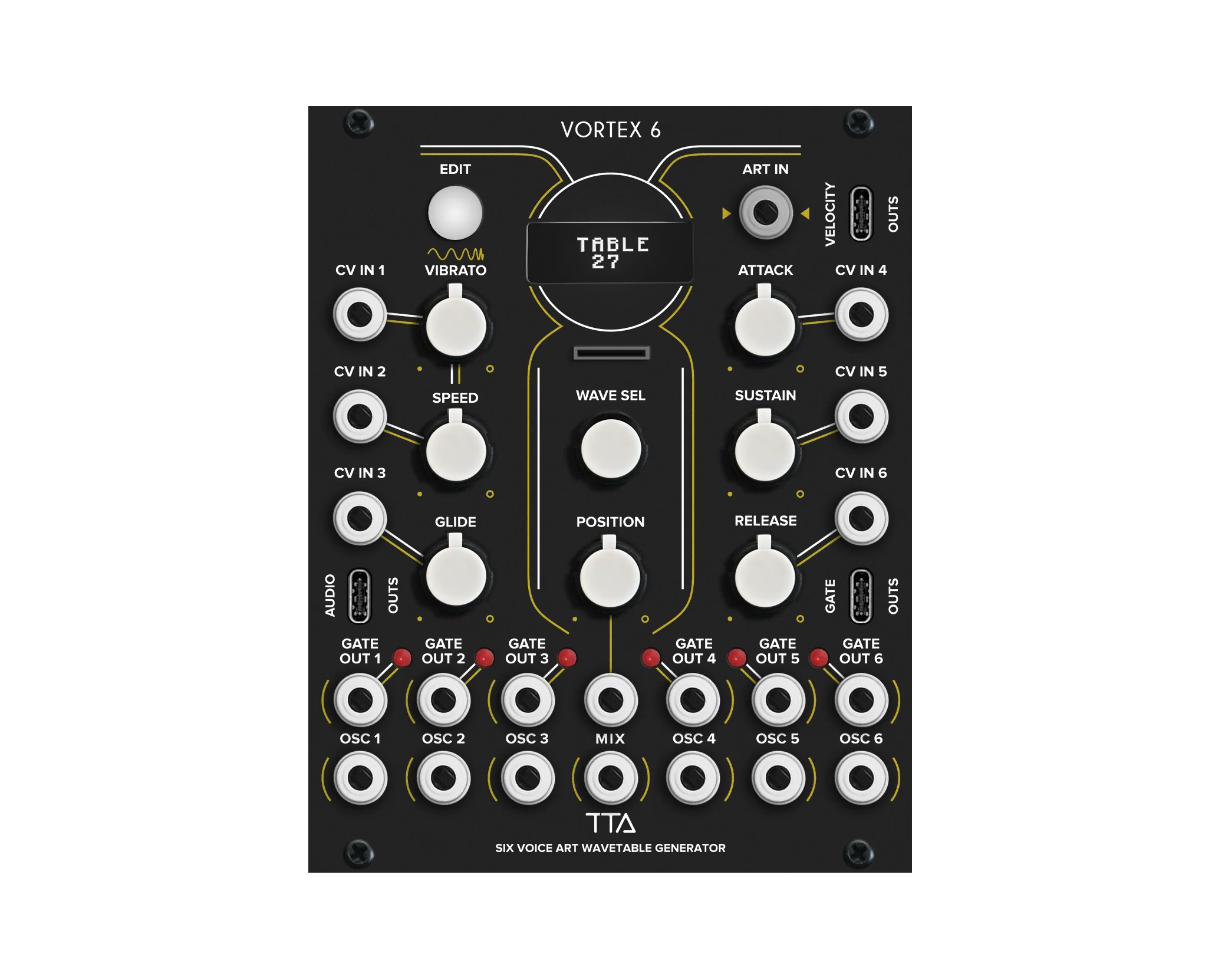

The Tiptop Audio Vortex6 is a polyphonic 6-voice wavetable oscillator inspired by the hardware design and sound of the PPG Wave 2.2. It is the only oscillator of this type that uses true 8-bit vintage audio converters from the ’80s.
Dozens of wavetables are provided internally, and user tables can be loaded via an SD card. VORTEX6 has built-in vibrato, glide, and six wavetable-scrolling envelopes, all with CV. The ART-in jack and a built-in voice manager take care of incoming notes and distribute them to audio, gate, and velocity outs—either through per-voice 3.5mm jacks or the Polytip jacks. Together with OCTOPUS, one or more OCTOSTAGES, OCTOPASS, and OCTOGAIN, along with a few Polytip patch cables, it forms the world’s first complete six-voice polyphonic modular synth. Alternatively, VORTEX6 can be patched to discrete mono modules or use its voice mix-out for paraphonic soundscapes with up to 12 oscillators in detune mode.

Product Specs

• Item Number: 37241
• Make: Tiptop Audio
• Model: Vortex6
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Digital Oscillator
• Made In: Thailand
• MPN: TTA-VORTEX6
• EAN: 8859469915064
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 20 HP 40 mm deep
• Power*: 190 mA +12V 50 mA -12V 0 mA 5V

* User contributed details
