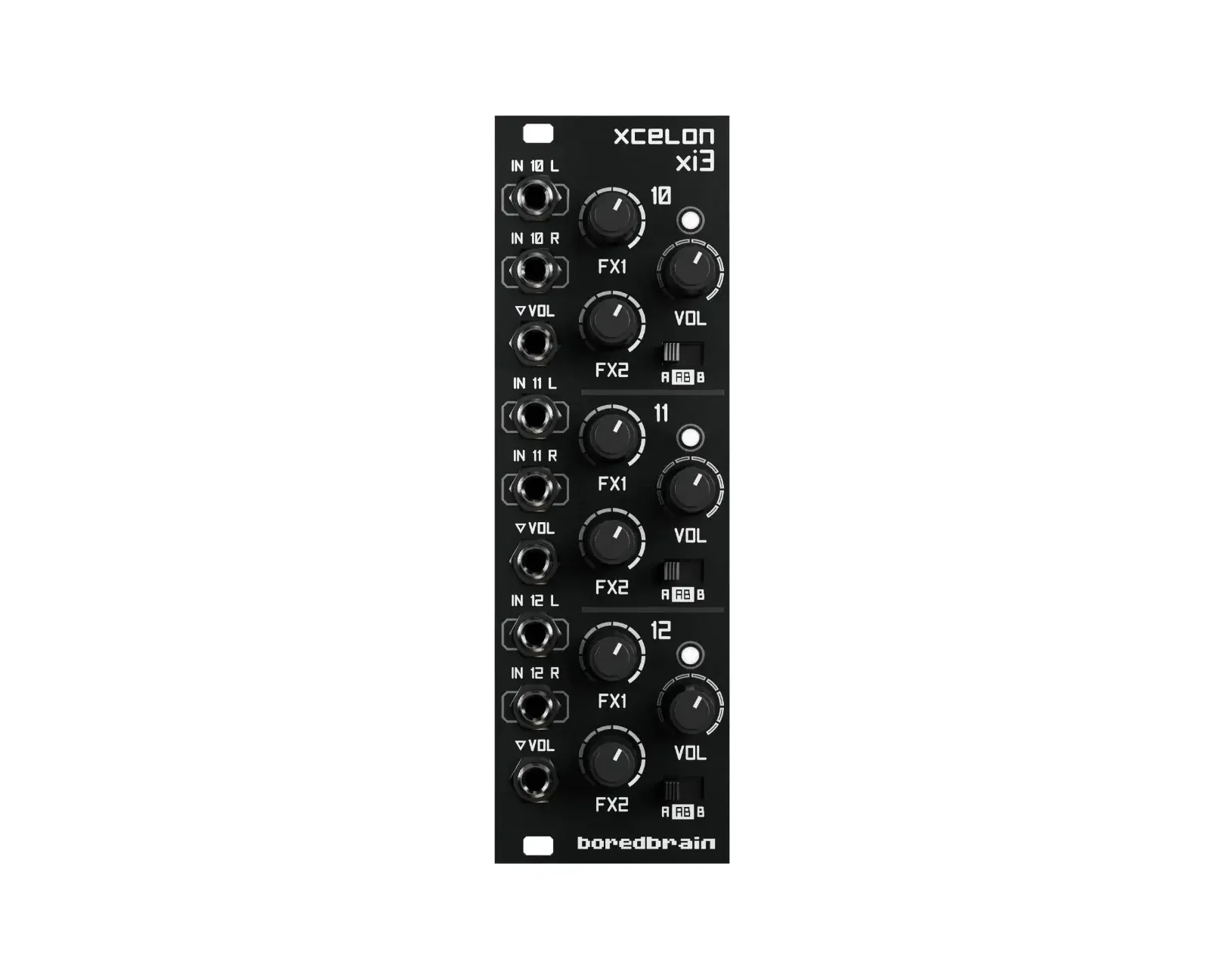

Xcelon Xi3 is a slim three-channel stereo input expander des igned for signals that don’t require the same degree of hands-on control offered by the main mixer. It features dedicated volume control with CV, stereo FX sends, and A/B mix bus routing per channel—all in just 8HP. Xi3 is ideal for FX returns, stereo submixes, and parallel signal integration.

Features

• Adds three stereo/dual-mono channels to Xcelon mixer in just 8 HP
• Two stereo FX sends and two stereo output mix busses selectable per-channel
• VCA-based volume controls with CV input and responsive LED indicators
• Configurable jumpers for dual-mono operation allowing up to six mono sources
• Pre/post-fader direct output ports for all three stereo channels

Tech Specs

• Audio Inputs: 6 x 3.5 mm jacks (3 stereo pairs)
• CV Inputs: 3 x 3.5 mm jacks (0 to +5 V)
• Input Impedance: 47 kΩ
• Width: 8 HP
• Depth: 1.5 in (38 mm)
• Weight: 4.4 oz (125 g)
• Power: +12 V 55 mA, -12 V 50 mA

Video: https://youtu.be/M7wLSPBYNPA

Product Specs

• Item Number: 38055
• Make: BoredBrain
• Model: Xcelon Xi3
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Expander
• Made In: United States
• MPN: BRED43
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 8 HP 38 mm deep
• Power*: 55 mA +12V 50 mA -12V ? mA 5V

* User contributed details
