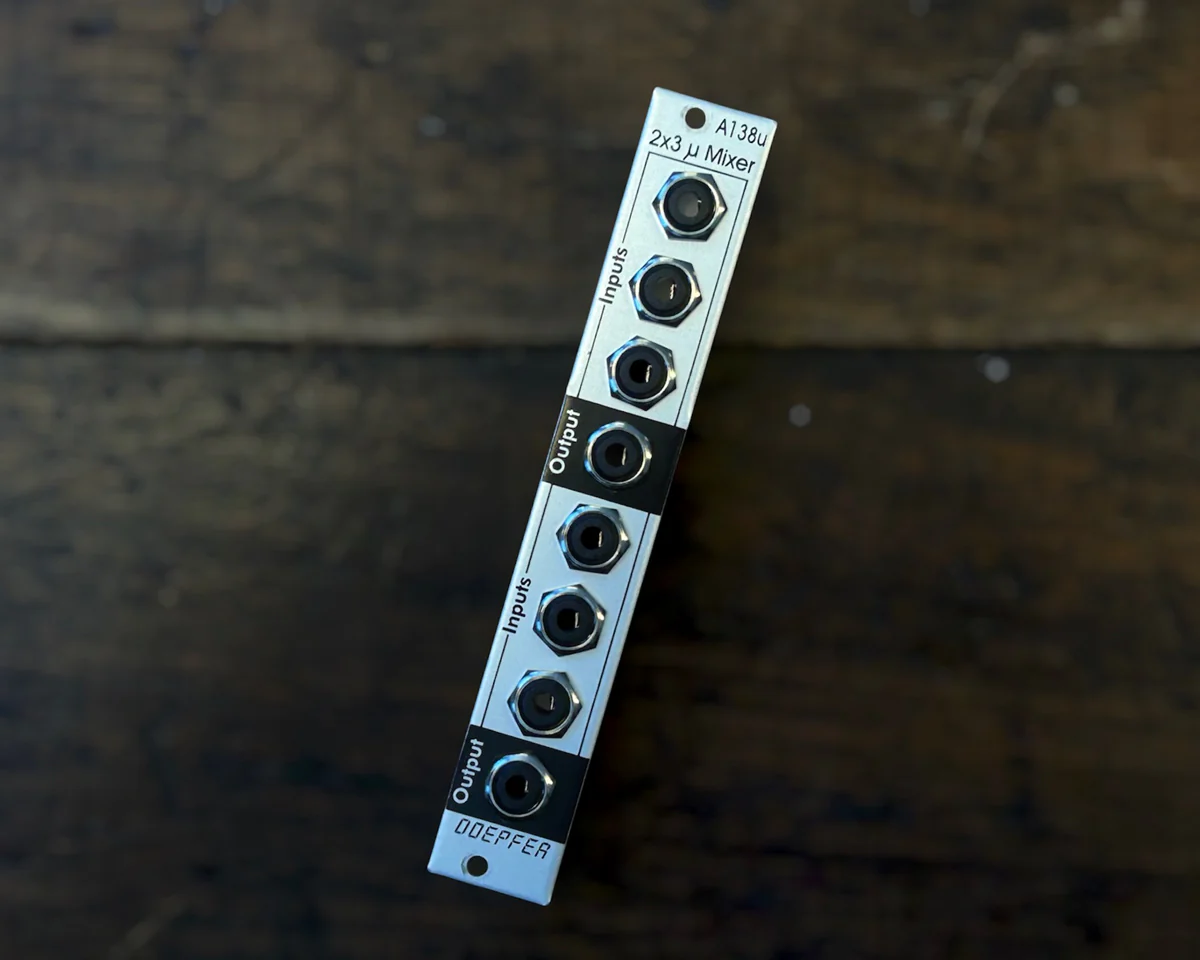

Doepfer A-138u Dual Micro Mixer
Module A-138u is a simple, low-cost mixer with two units. Each unit is equipped with three inputs and one output. The upper unit has a total of 0 ... + 1. The third input is equipped with such an attenuator. The factory setting is amplification = 1 for all inputs.
The output of the upper unit is normalized to the first input of the lower unit. Thus, the module can be used as a mixer with five inputs: for these inputs 1, 2 and 3 of the upper unit and the inputs 2 and 3 of the lower unit are used. The sum output for all five signals is then the output of the lower unit. As soon as it is plugged in, it becomes a 3-in-1 mixer again.
Inputs and outputs are DC-coupled, ie audio and control signals can be mixed.
Video: https://youtu.be/wsIai0sGqO4
Product Specs
- Item Number: 41048
- Make: Doepfer
- Model: A-138u
- Condition: Very Good
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Dual/Stereo Mixer
- Made In: Germany
- MPN: 41048
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 4 HP 25 mm deep
- Power*: 10 mA +12V 0 mA -12V 0 mA 5V
* User contributed details
