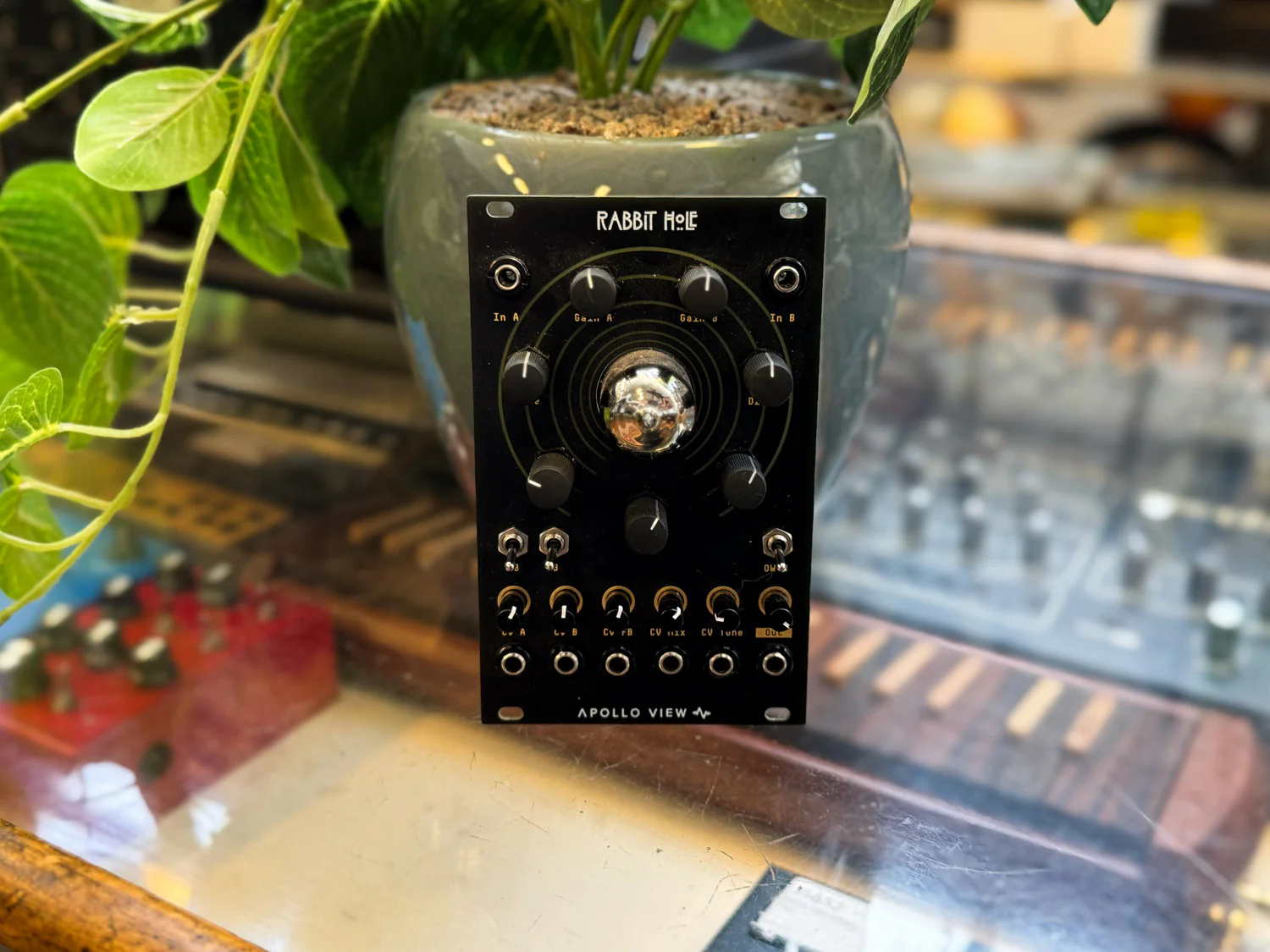

The Apollo View Rabbit hole is a 16HP expandable mixer capable of adding subtle warmth or total audio destruction.

Features:

• 2 channel mixer with vintage character OTA per input VCAs
• 12AU7 Vacuum Tube Core
• Fat sounding all analogue signal path
• 4 possible stages of distortion
• Tone shaping with CV control
• Dry/Wet Mix with CV control
• Feedback with CV control
• Attenuverters on all CV inputs
• Switchable diode clipping circuit “OWTH - Off With Their Heads”
• “L8” Switch to change Tube character
• Normalled Gain CV for all inputs including Curiouser expander
• Attenuverter on Output to control volume and flip phase
• Curiouser expander adds additional 2 VCA inputs
• 16HP
• 40mm depth
• Reverse polarity protected
• +12V 260mA
• -12V 95mA

Product Specs

• Item Number: 41936
• Make: Apollo View
• Model: Rabbit Hole
• Condition: Very Good
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Distortion Mixer Tube VCA
• Made In: United Kingdom
• MPN: 41936
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 16 HP 40 mm deep
• Power: 260 mA +12V 95 mA -12V ? mA 5V
