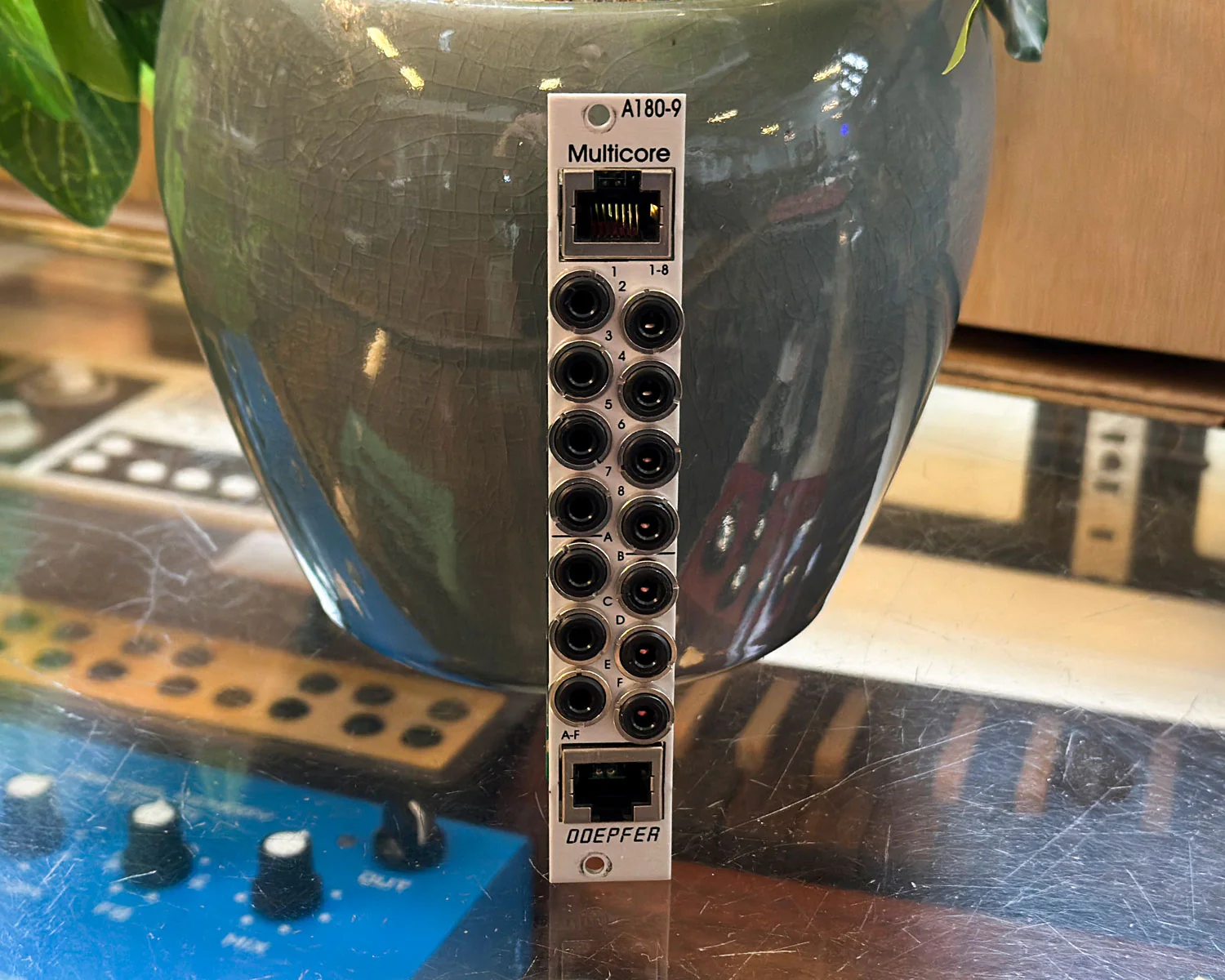

Doepfer A-180-9 Multicore
A-180-9 is a simple but useful tool when it comes to networking multiple systems or enclosures. Sold as a pair of 2 x 4HP modules, it is used to connect up to 14 audio or control signals between different A-100 enclosures with common network cables (RJ45). These cables are available worldwide in different lengths and colours easily. 2 black network cables with a length of 0.5m are included.
The upper network connection is connected to the 8 sockets 1-8, the lower one to the 6 sockets AF. In this way, the modules in the different housings for live applications can be completely pre-patched. The signals required simultaneously in the housings (eg Clock, Start, Stop, Master CV) are then connected to only one or two network cables.
Product Specs
- Item Number: 41977
- Make: Doepfer
- Model: A-180-9
- Condition: Very Good
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Utility
- Made In: Germany
- MPN: 41977
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 4 HP 25 mm deep
- Power*: Module does not draw current
* User contributed details
