Scrolls is a fully analogue bass preamp, drive, EQ and DI pedal designed in collaboration with Japanese bass tone specialist Kentaro Nakao. Built to shape the natural character of your instrument into a wide range of bass, amp and cabinet-style tones, it works equally well as a front-end tone shaper, recording DI, live ampless rig, or final-stage bass preamp.

The right side of Scrolls features a tube amp-inspired Drive section with detailed control over saturation and low-end response. The Blend control lets you mix clean signal back into the driven tone, preserving clarity and weight, while the Bandwidth control changes where the clipping is most active. Turn it counterclockwise for clipping focused more heavily in the low frequencies, or clockwise for more upper-frequency drive character.

The left side houses a powerful active EQ section with Bass, Middle and Treble controls, plus a Variable Frequency control that can cut or boost from roughly 20Hz to 10kHz. This makes Scrolls highly effective for removing muddiness, adding articulation, tightening the low end, or pushing upper harmonics forward without losing the core feel of the bass.

Three push-button switches provide quick access to useful tone-shaping options, while the onboard effects loop sits between the Drive and EQ sections. This allows modulation and other effects to be placed after the drive stage while still letting the EQ shape the full signal at the end of the chain.

For live and studio use, Scrolls includes both a standard ¼" output and a balanced XLR output with analogue speaker cabinet simulation. It can run directly into a bass amp, straight to front of house, or into an audio interface for recording without an amplifier.

Features

• Fully analogue bass preamp, drive, EQ and DI
• Designed in collaboration with Kentaro Nakao
• Tube amp-style Drive section
• Blend control for mixing clean and driven signal
• Bandwidth control adjusts where clipping is most prominent
• Active Bass, Middle and Treble EQ
• Variable Frequency control with cut/boost range from approx. 20Hz to 10kHz
• Three push-button tone-shaping switches
• Buffered Parallel Out for sending clean signal to another destination

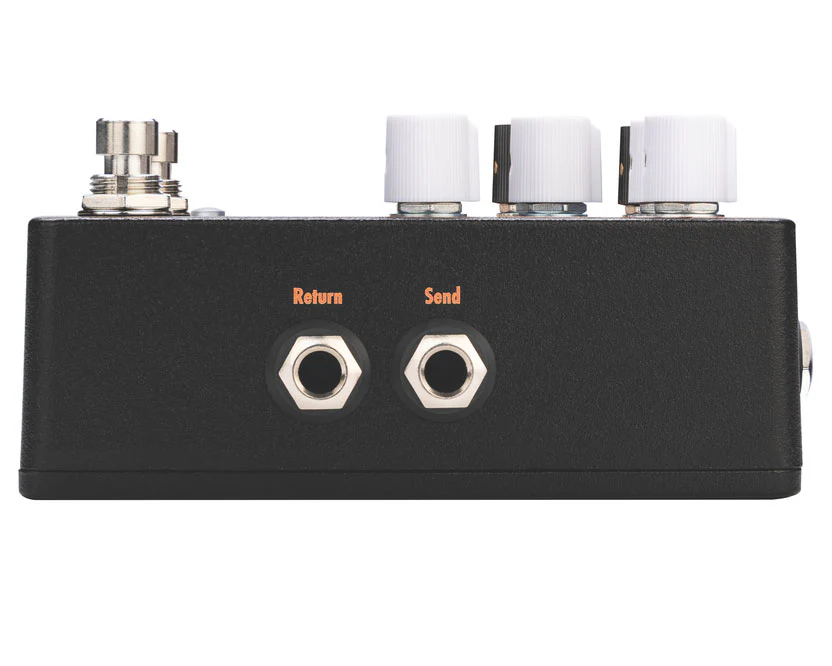

• Effects loop positioned between Drive and EQ sections
• ¼" output for connection to bass amps or pedal chains

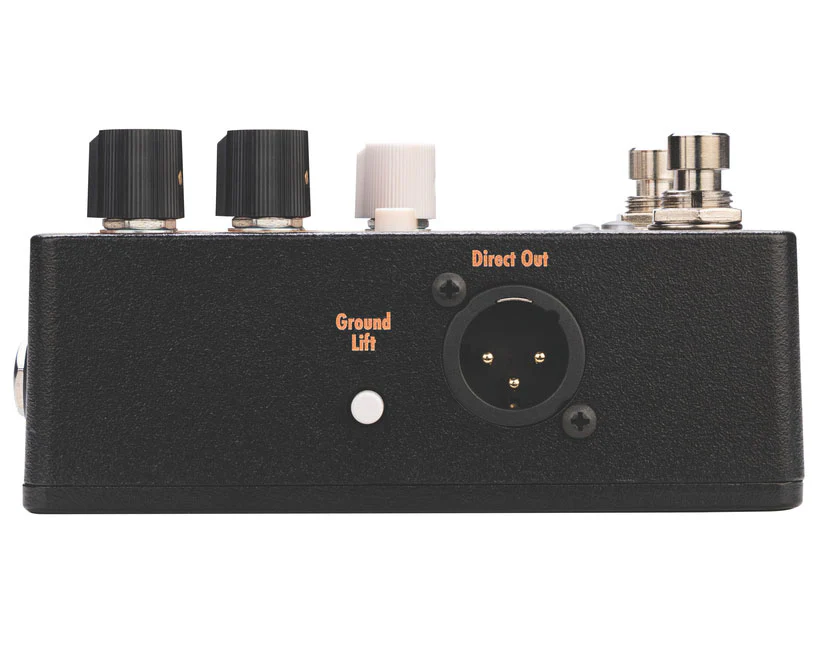

• Balanced XLR output with analogue speaker cabinet simulation
• Suitable for ampless live performance and direct recording
• True bypass
• Built one at a time by EarthQuaker Devices in Akron, Ohio

Signal Flow

• Input
• Drive section
• Effects loop
• EQ section
• ¼" output / balanced XLR DI output

Designed For

• Bass preamp duties
• Ampless live rigs
• Direct recording
• Drive and saturation shaping
• Tone matching between bass and amp-style sounds
• Front-of-chain tone conditioning
• End-of-chain EQ and DI use

Video: https://youtu.be/y_87c2OGsSo

Product Specs

• Item Number: 42030
• Make: EarthQuaker Devices
• Model: Scrolls
• Condition: Brand New
• Finish: Black
• Categories: effects-and-pedals ⇒ bass-pedals ⇒ pedal
• Made In: United States
• MPN: EQD-SCROLLS
• UPC: 810019915819
