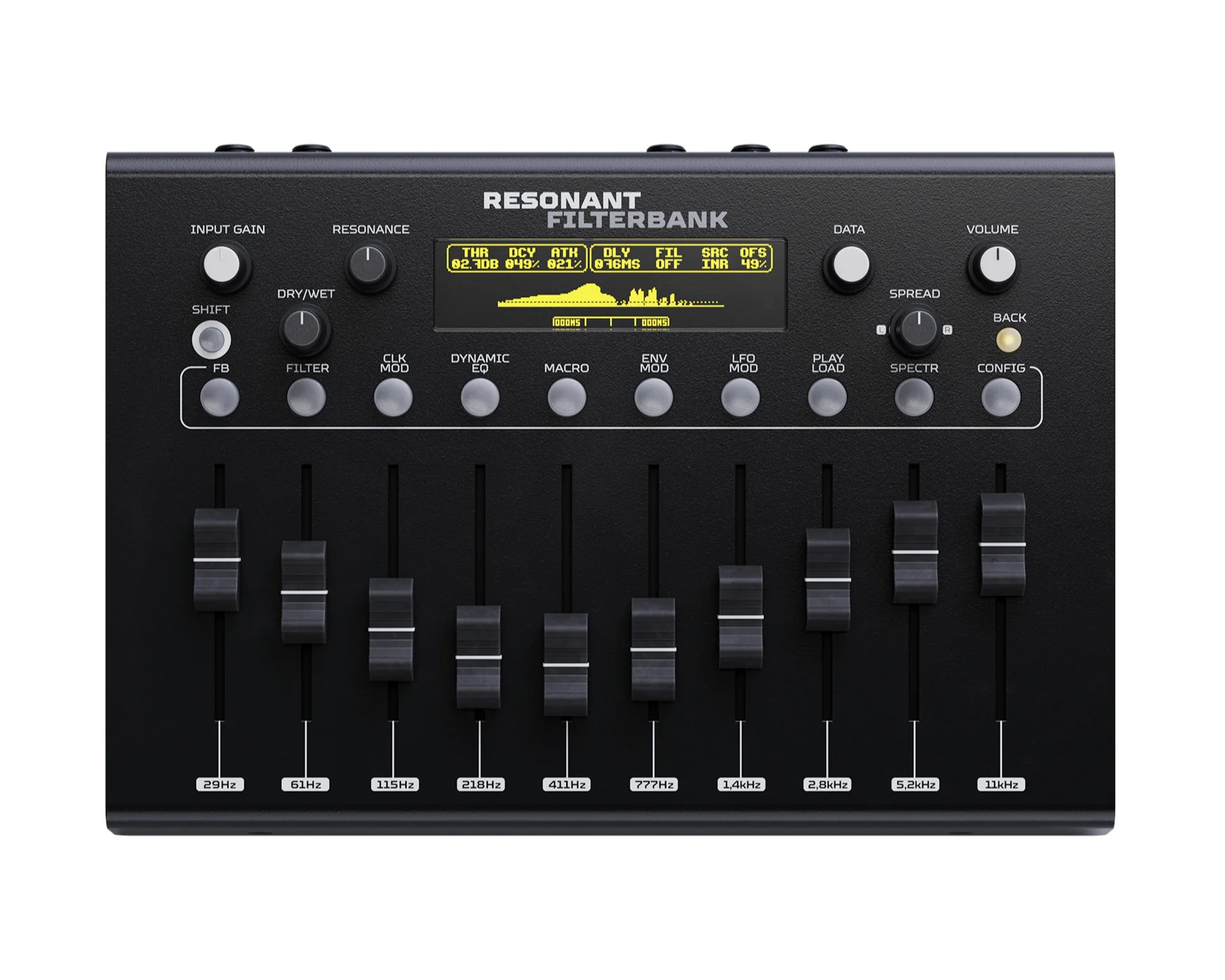

The Erica Synths Resonant Filterbank is a stereo analog filterbank with ten bandpass filters, each with hands-on boost/cut control.
Carve space surgically — or push it into self-oscillation, feedback, and completely unstable territory. With the right gain staging and resonance, it stops behaving like an effect and starts acting like an instrument.

FEATURES

• Analog 10-band stereo filterbank
• Filter frequencies: 29 Hz, 61 Hz, 115 Hz, 218 Hz, 411 Hz, 777
• Hz, 1.5 kHz, 2.8 kHz, 5.2 kHz, 11 kHz
• Filter slope: 17 db/decade
• High quality film capacitors in the bandpass filters
• Manual and MIDI CC controlled bands’ boost and cut
• Configurable resonance feedback loops
• Manual and MIDI CC controlled resonance
• MIDI clock synchronization of events
• Multimode filter mode
• Spectral analyzer mode
• Dynamic spectral compressor mode
• 20 independent LFOs
• 20 independent envelope followers
• User snapshot (preset) memory with 128 slots
• Discrete and morphing snapshot change
• 6.3mm balanced stereo inputs and outputs
• Configurable footswitch input

Product Specs

• Item Number: 42409
• Make: Erica Synths
• Model: Resonant Filterbank Desktop
• Condition: Brand New
• Finish: Black
• Categories: effects-and-pedals ⇒ eq
• Made In: Latvia
• MPN: ESRFBDESKTOP
• EAN: 4752275000952
