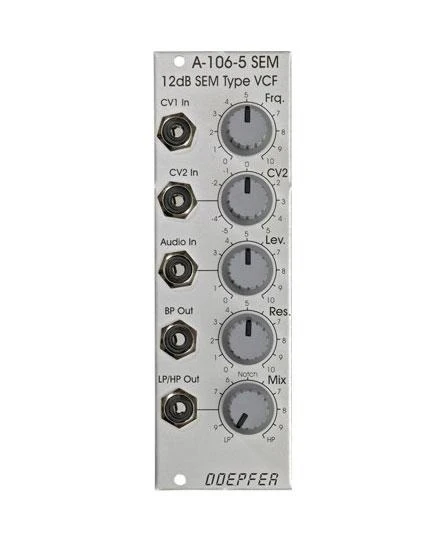

Doepfer A-106-5 12dB SEM Filter
Module A-106-5 is an 8HP 12dB multimode filter that is based on the filter circuit of the Oberheim SEM module. The filter is equipped with a band pass output and a combined low/notch/high pass output. For this output a control knob defines the relation between low and high pass signal. If both signals appear at the same level (i.e. middle position of the Mix knob) one obtains a notch filter. Otherwise the low or high pass signal predominates. The module does not feature self oscillation in contrast to most of the other filters of the A-100 system. The module generates a distorted audio signal if the level control is set to about 50% (i.e. center position) or more with A-100 standard signals like VCOs.
Brand new with warranty.
Video: https://youtu.be/4pZDcn6qNn8
Product Specs
- Item Number: 9053
- Make: Doepfer
- Model: A-106-5 12dB SEM Filter
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Made In: Germany
- MPN: A-106-5
- EAN: 4250711110659
